The 5,000 lb Single T-Rod Rigging Pick Point has a working load limit (WLL) of 5,000 lbs in any direction and can be installed on any concrete structure. The special round base swivel hoist ring rotates in 360 degrees.

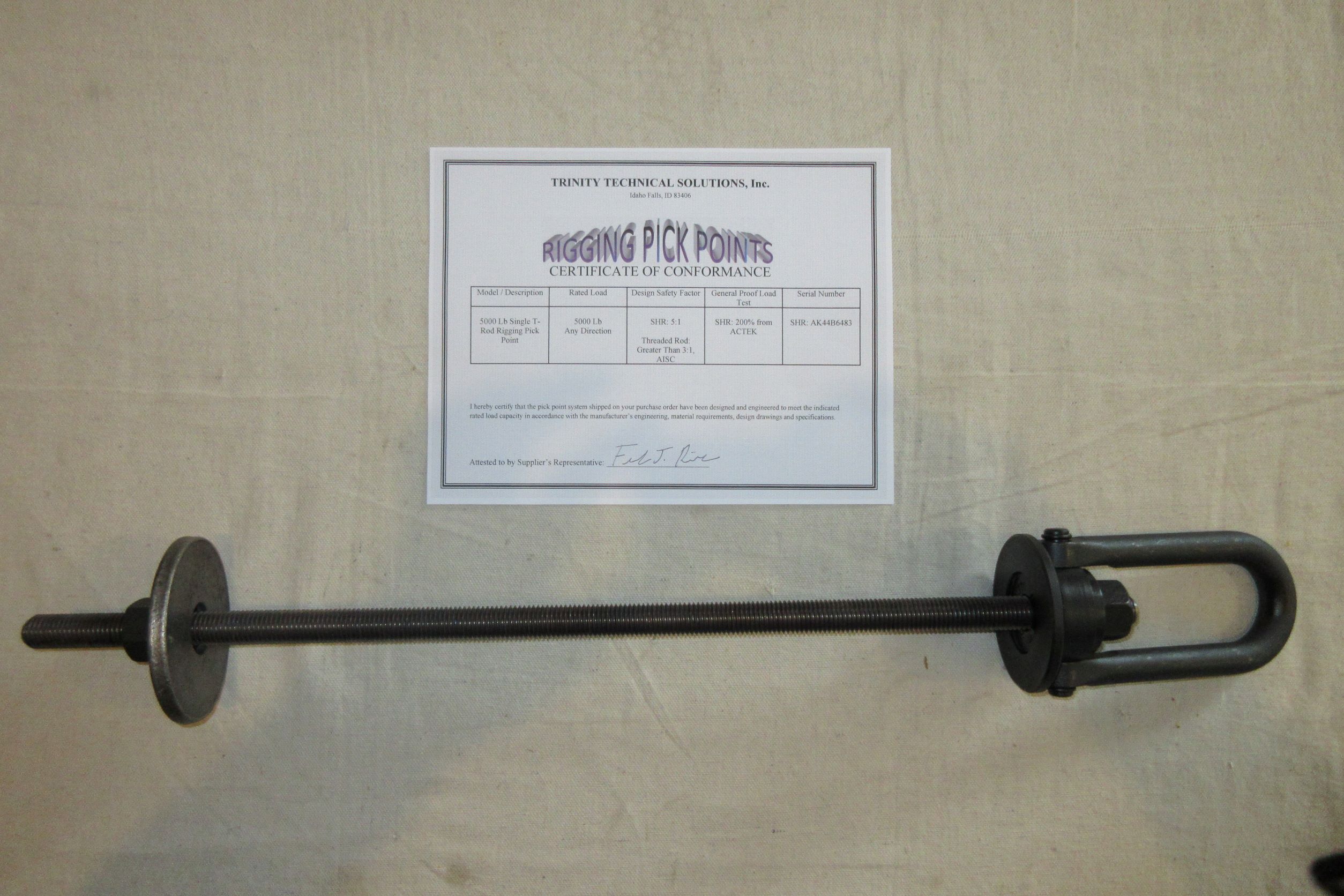

The T-Rod kit comes with two high strength heavy hex steel nuts, a 4" diameter flat washer, two transition washers and a high strength threaded rod with any length specified by the customer.

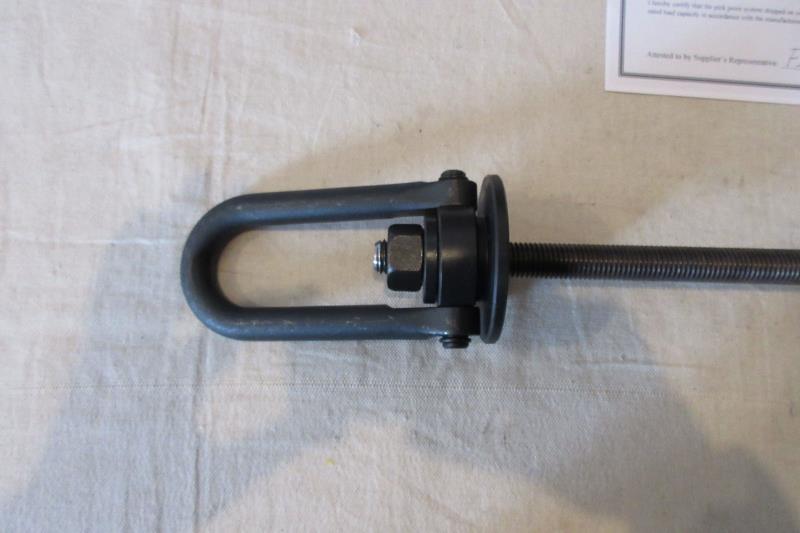

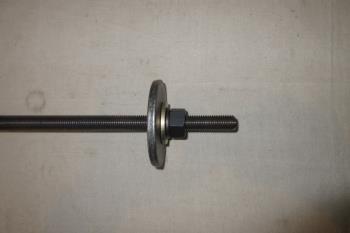

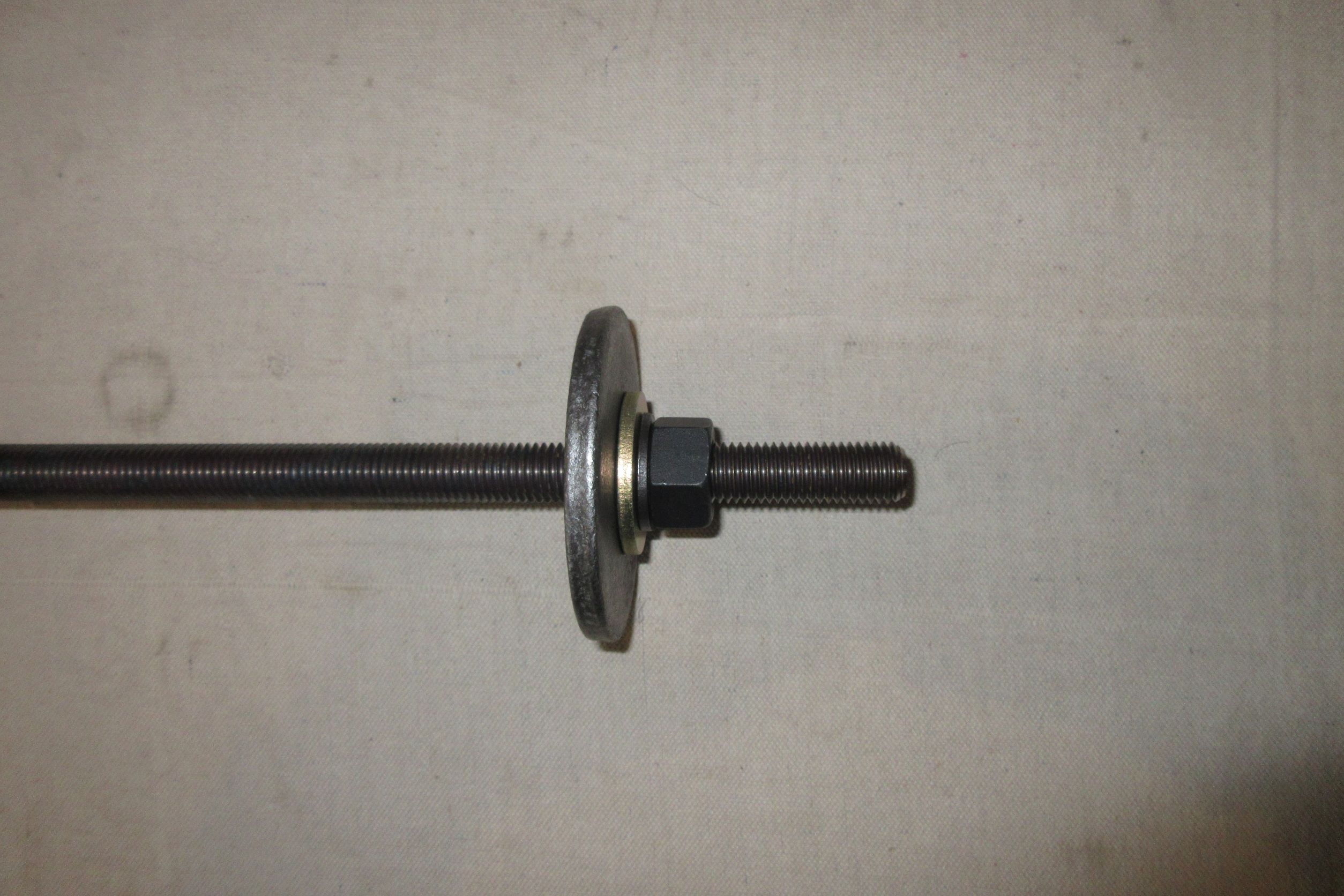

The T-Rod pick point is designed to be installed into a hole drilled through a concrete block, concrete wall, concrete floor or concrete structure. The special wide base swivel hoist ring is securely fastened on the back side of the concrete with a large 4 inch round flat washer and heavy hex nut. This configuration is designed to distribute the load on each face of the concrete block to give an extra measure of safety.
The T-Rod rigging pick point design comes as a kit with everything you need to quickly install a concrete anchor point. Rigging Pick Points can be used to create permanent anchor points, as attachable lifting lugs or bails, or for fall arrest and fall restraint applications.
Working Load Limit (WLL) = 5,000 lbs in Any Direction (Assy Only, See Warnings Page)
Swivel Hoist Ring is designed to 5:1 on ultimate strength and load tested to 2:1 (Meets ASME B30.26)
High Strength Steel Threaded Rod is Designed 3:1 on tension and shear.
Fastening Type: Threaded Rod meeting ASTM A354BD or Gr. 8.
NOTE: To Determine the Total Thread Protrusion Length Subtract 1.36 Inches from Bolt Length.
Assy Wt: Approximately 8 lbs
PART No. 02-04 (Additional Threaded Rod Lengths Not Offered Below are Available Upon Request Contact Us)
WARNINGS: See the Rigging Pick Point Warnings page prior to purchase of any Rigging Pick Point.
