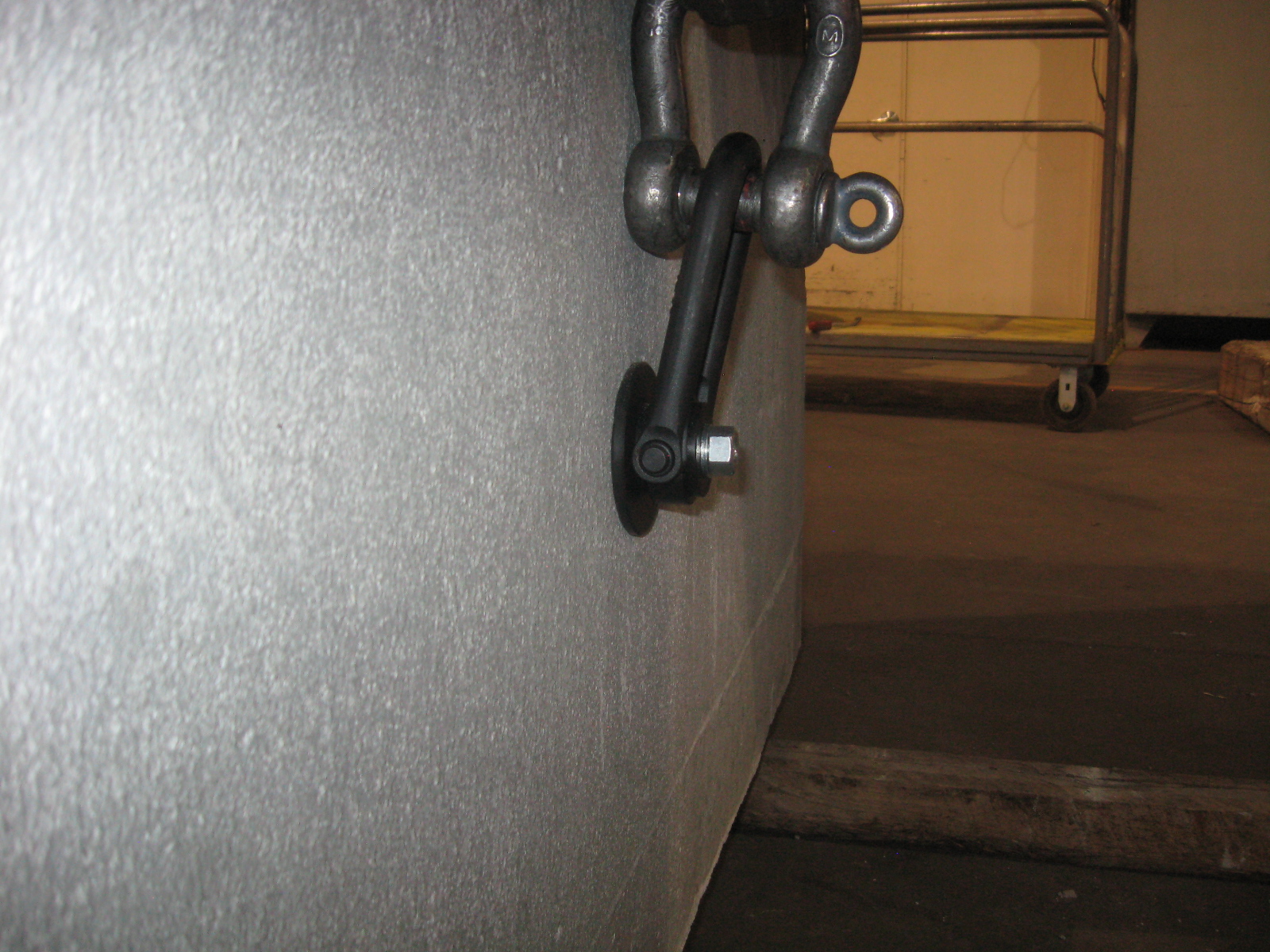

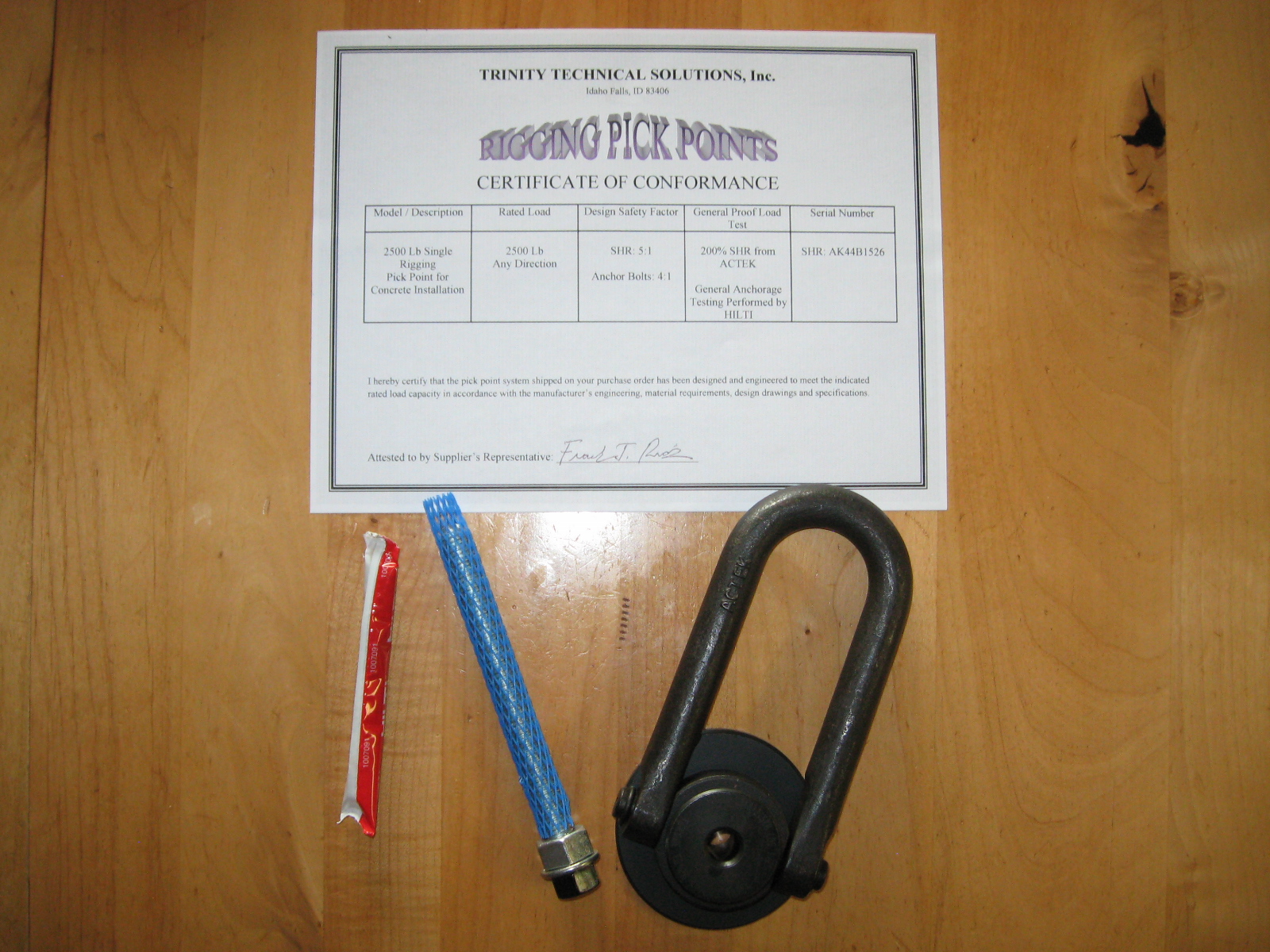

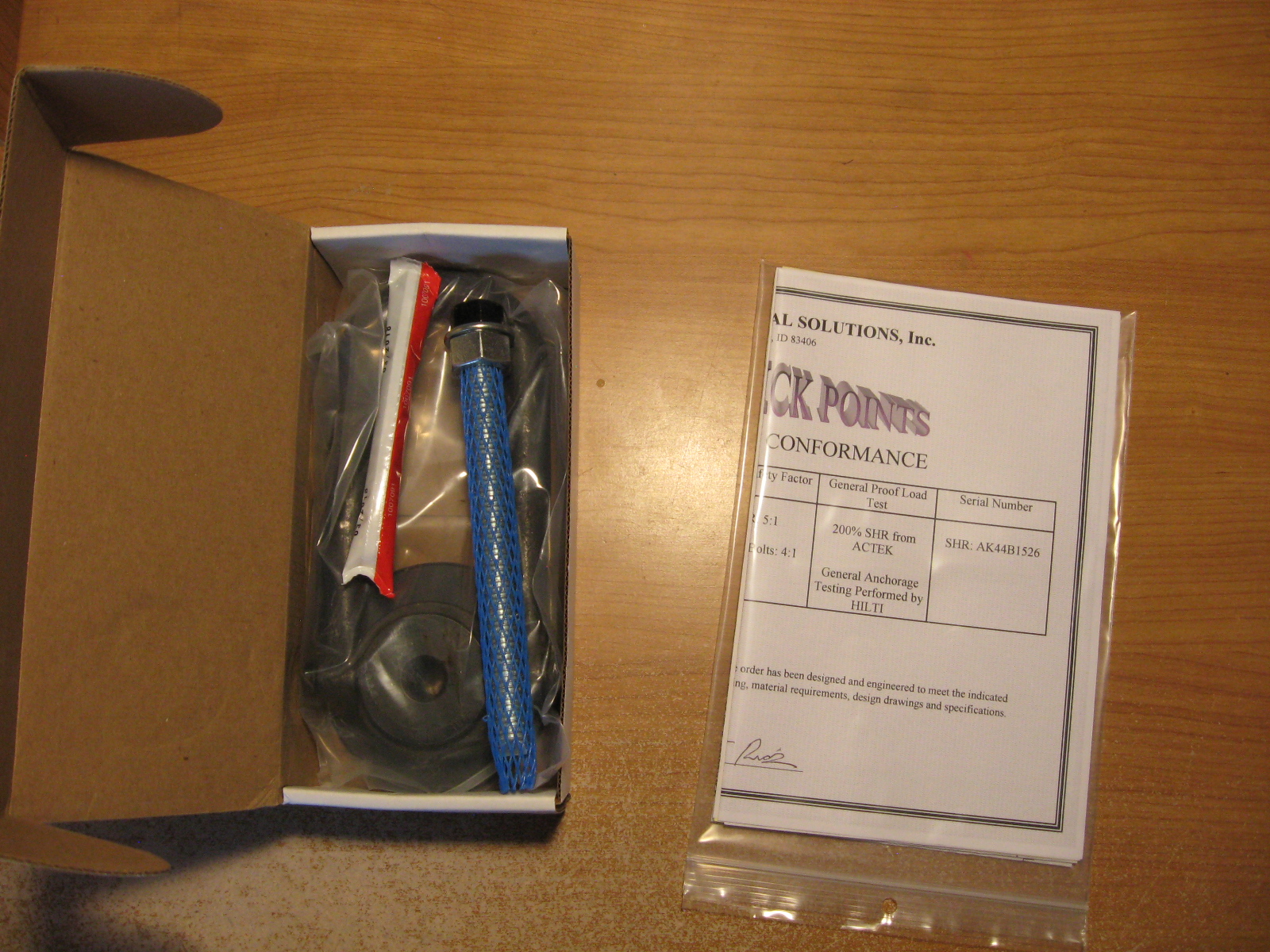

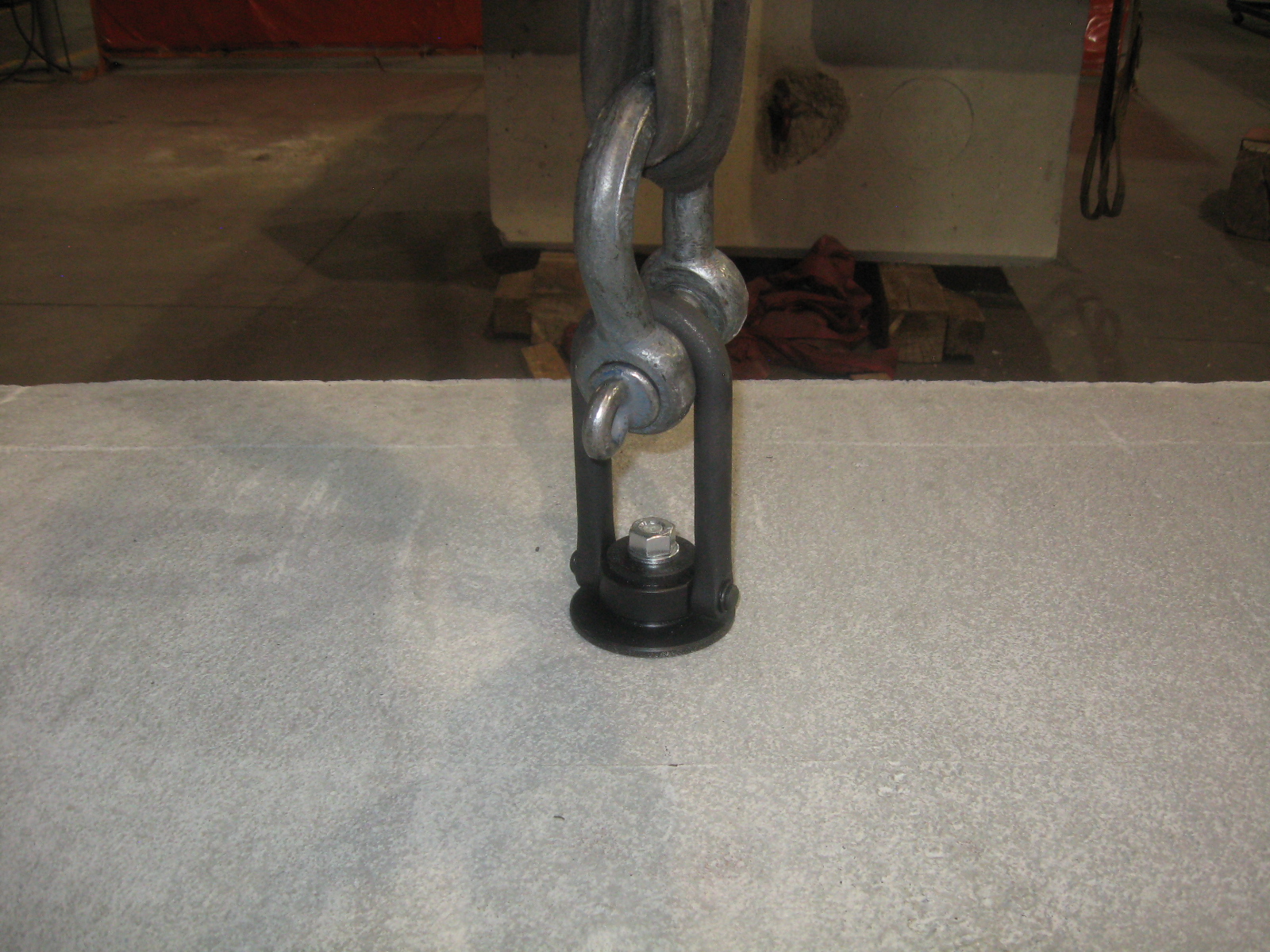

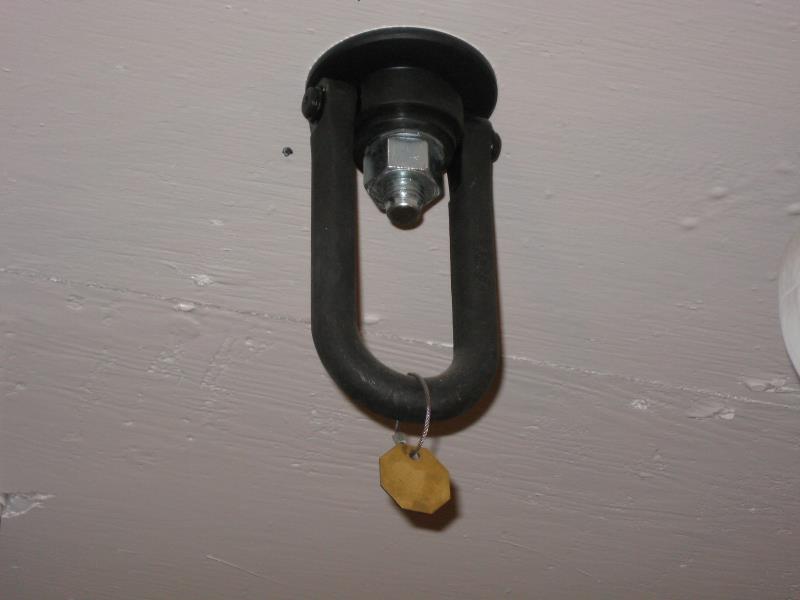

The 2,500 lb Single Rigging Pick Point for concrete installation has a working load limit (WLL) of 2,500 lbs in any direction for short duration loading, and 1,100 lbs in any direction for sustained permanent/seismic installations. It can quickly be installed on concrete structures, ceilings, walls or floors. This revolutionary anchor design comes as a kit with everything you need to quickly install a Rigging Pick Point.
The single rigging pick point for concrete installation uses one epoxy anchor. Unlike the plate rigging pick point, the single rigging pick point can be installed in tight spaces or on narrow beams. Note that the anchor embedment is deeper with a single pick point vs. a plate pick point because a single anchor is supporting the load.

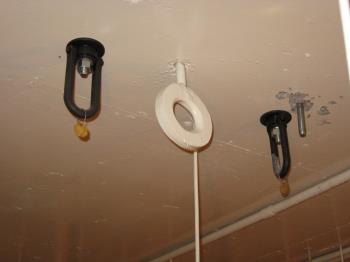

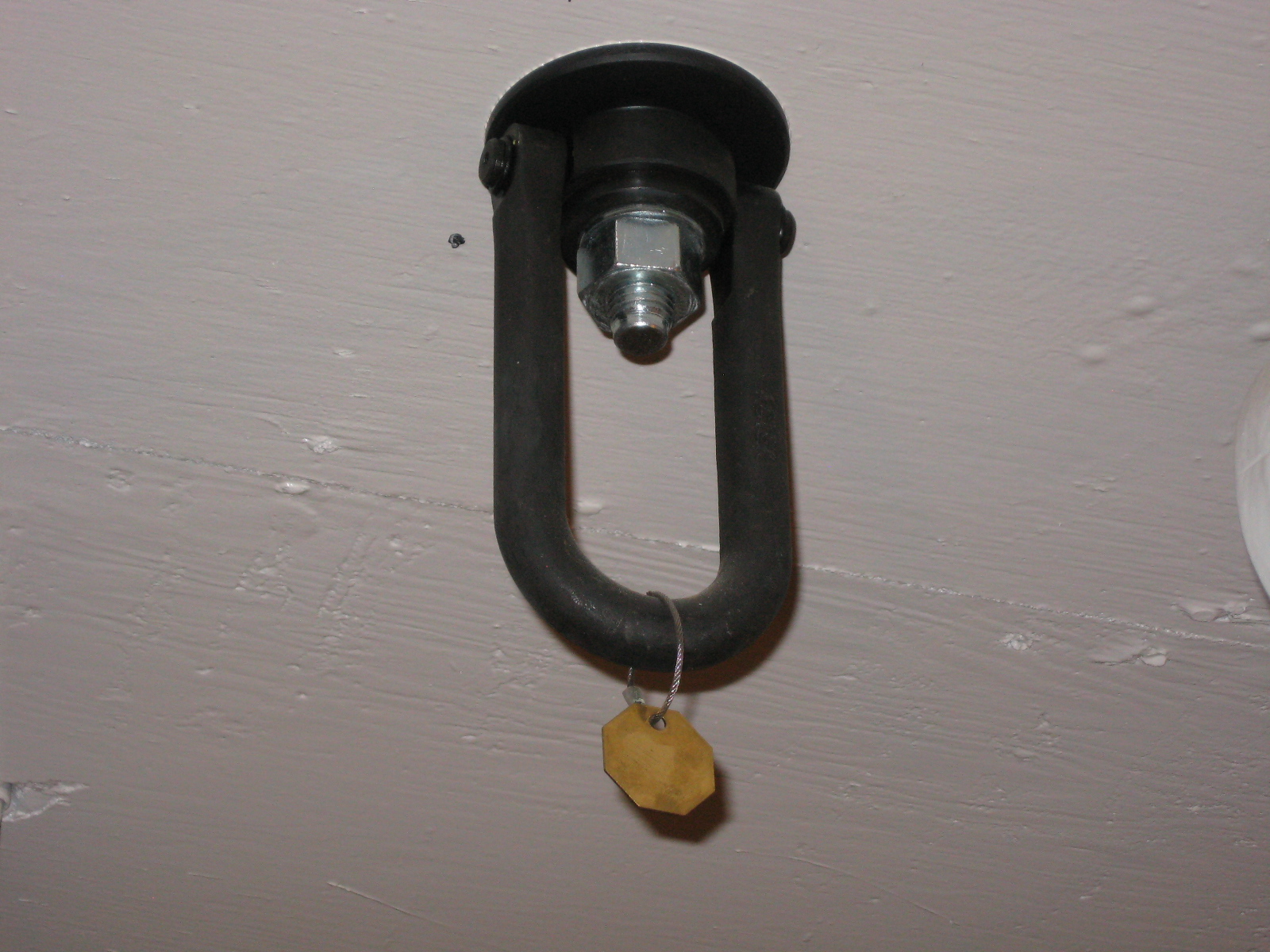

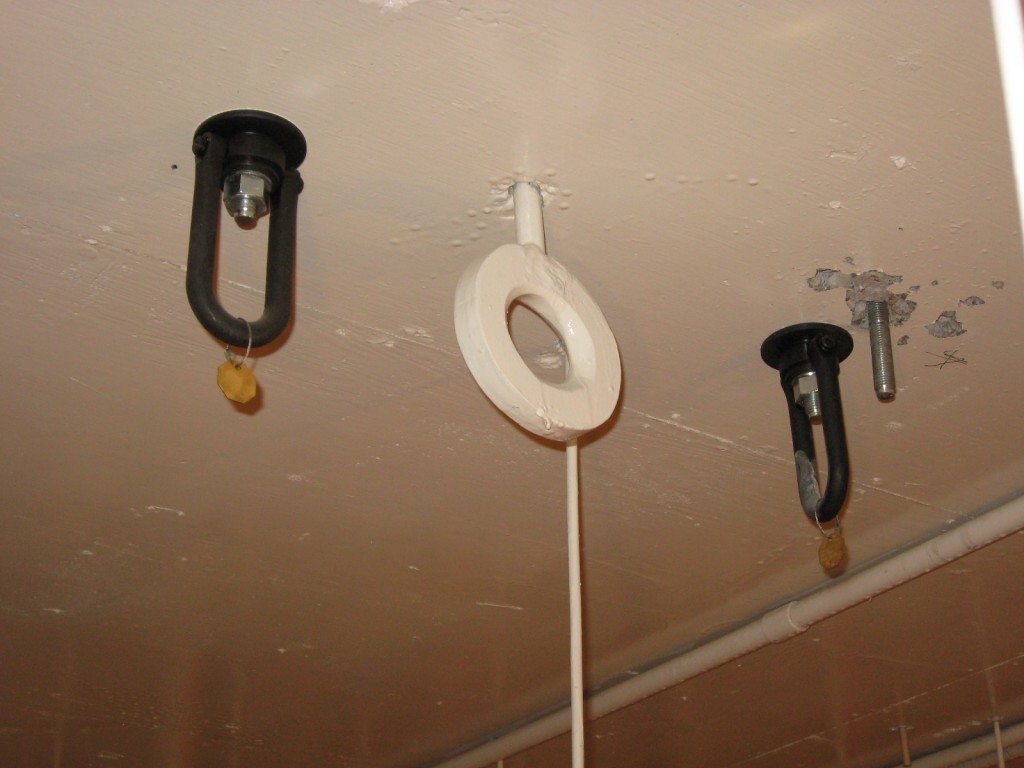

Rigging Pick Points can be used for concrete lifting, to create concrete anchor points, as attachable lifting lugs or attachable bails, creating a lifting point, or for fall restraint applications.
SPECIFICATIONS:
Working Load Limit (WLL) = 2,500 lbs in Any Direction (Short Duration Loading), or 1,100 lbs in Any Direction (Sustained Permanent/Seismic Loading), Assy Only, See Warnings Page
Load Tested to 125%
Swivel Hoist Ring is designed to 5:1 on ultimate strength and load tested to 2:1 (Meets ASME B30.26)
Concrete Anchor is designed to ACI 318-14, Minimum 2:1 Safety Factor
Fastening Type: Epoxy Concrete Anchor
Concrete Anchor Embedment Depth: 4-1/4 Inches
Minimum Spacing Between Pick Points: 18 Inches
Minimum Concrete Edge Distance: 8 Inches (One Installed), 13 Inches (Two or More Installed Within 36 Inch Spacing)
Minimum Concrete Slab Thickness: 6 Inches
Assy Wt: Approximately 5 lbs
PART No. 01-03
WARNINGS: See the Rigging Pick Point Warnings page prior to purchase of any Rigging Pick Point.
