5,000 lb Single Pick Point for Steel (Part No. 01-04)

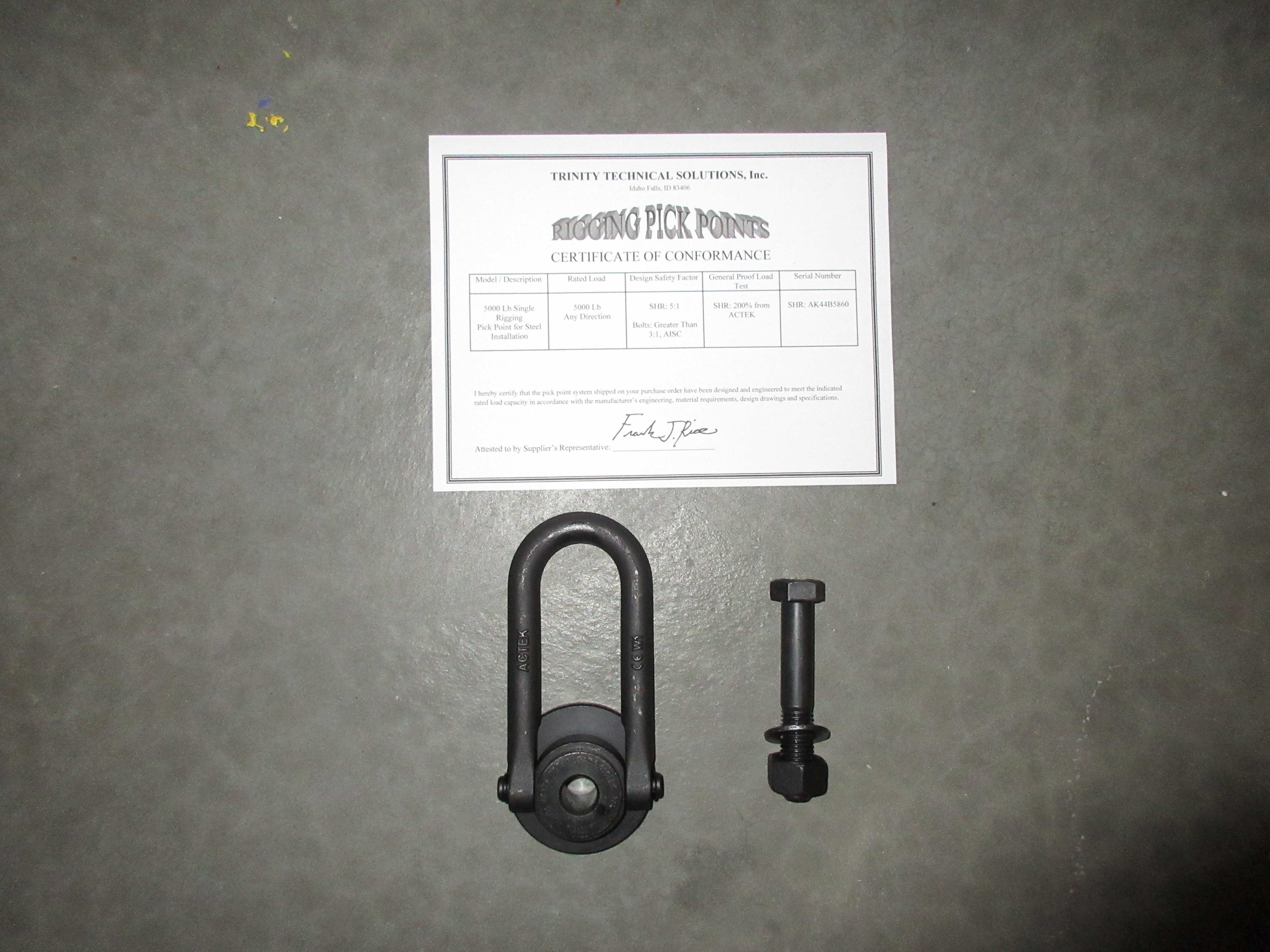

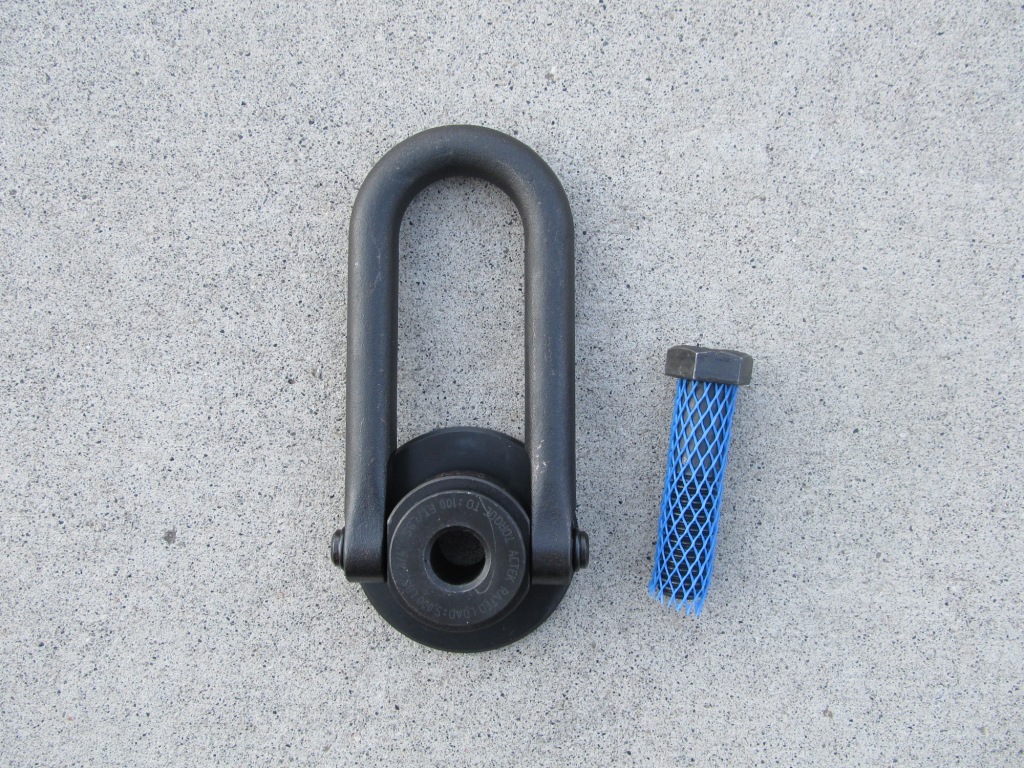

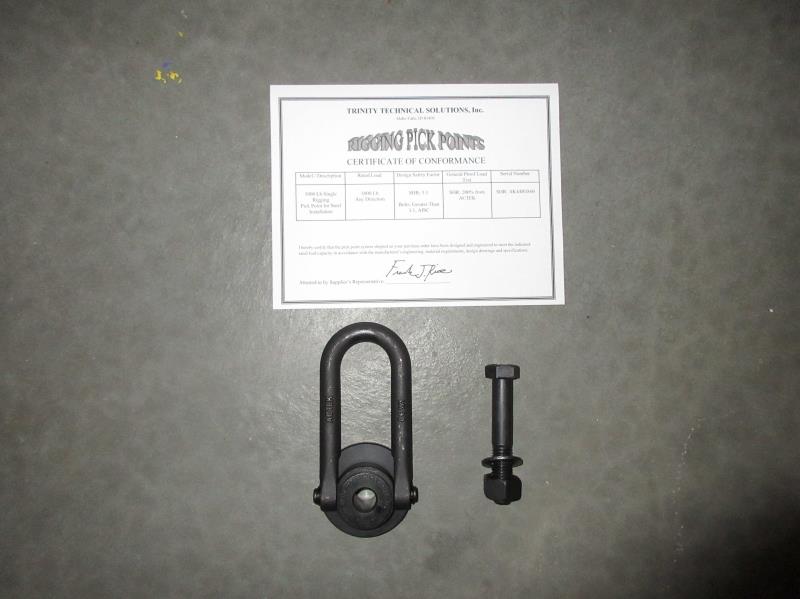

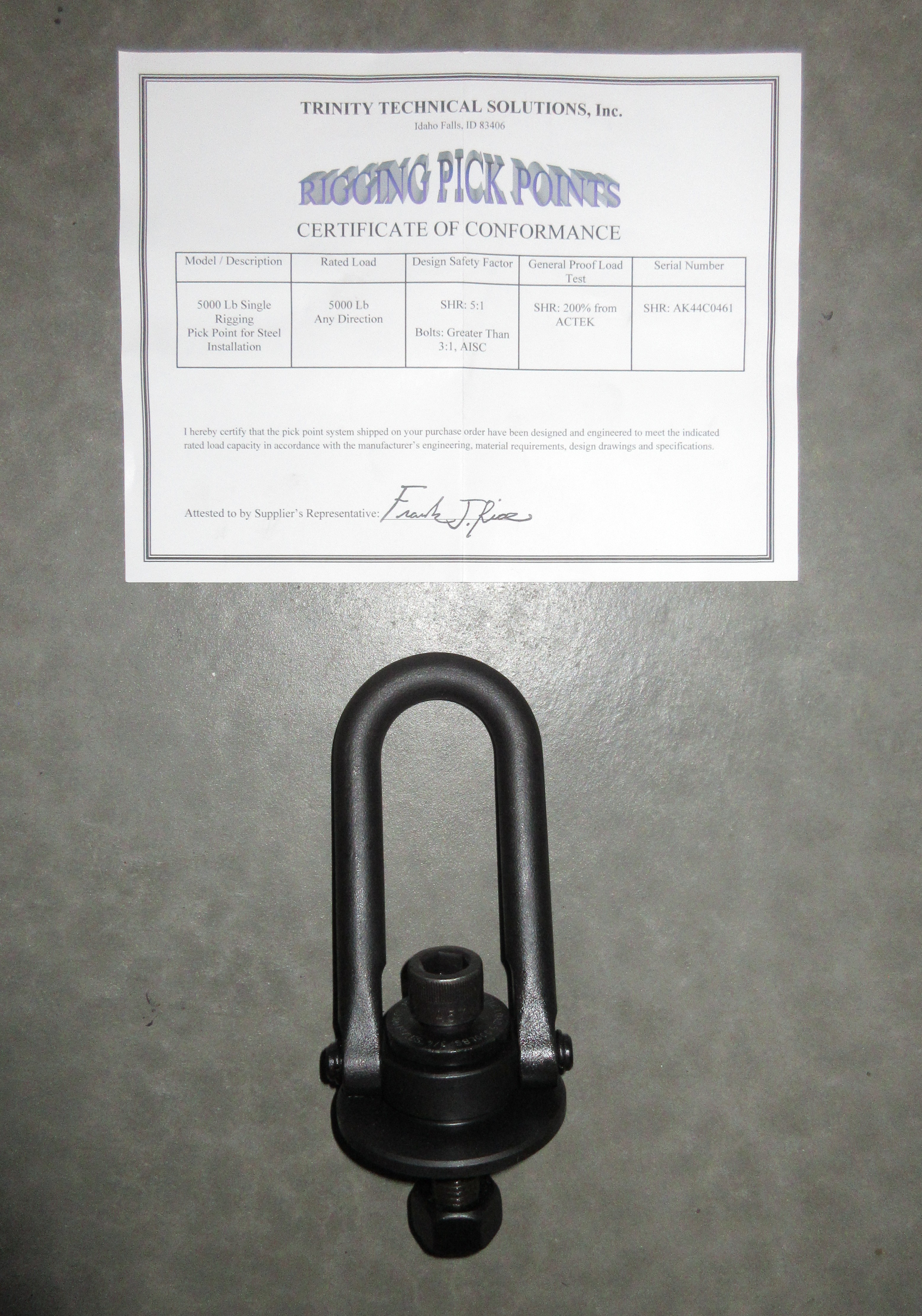

The 5,000 lb Single Rigging Pick Point for steel installation has a working load limit (WLL) of 5,000 lbs in any direction and can quickly be installed on any steel structure. This revolutionary anchor design comes as a kit with everything you need to quickly install a Rigging Pick Point.

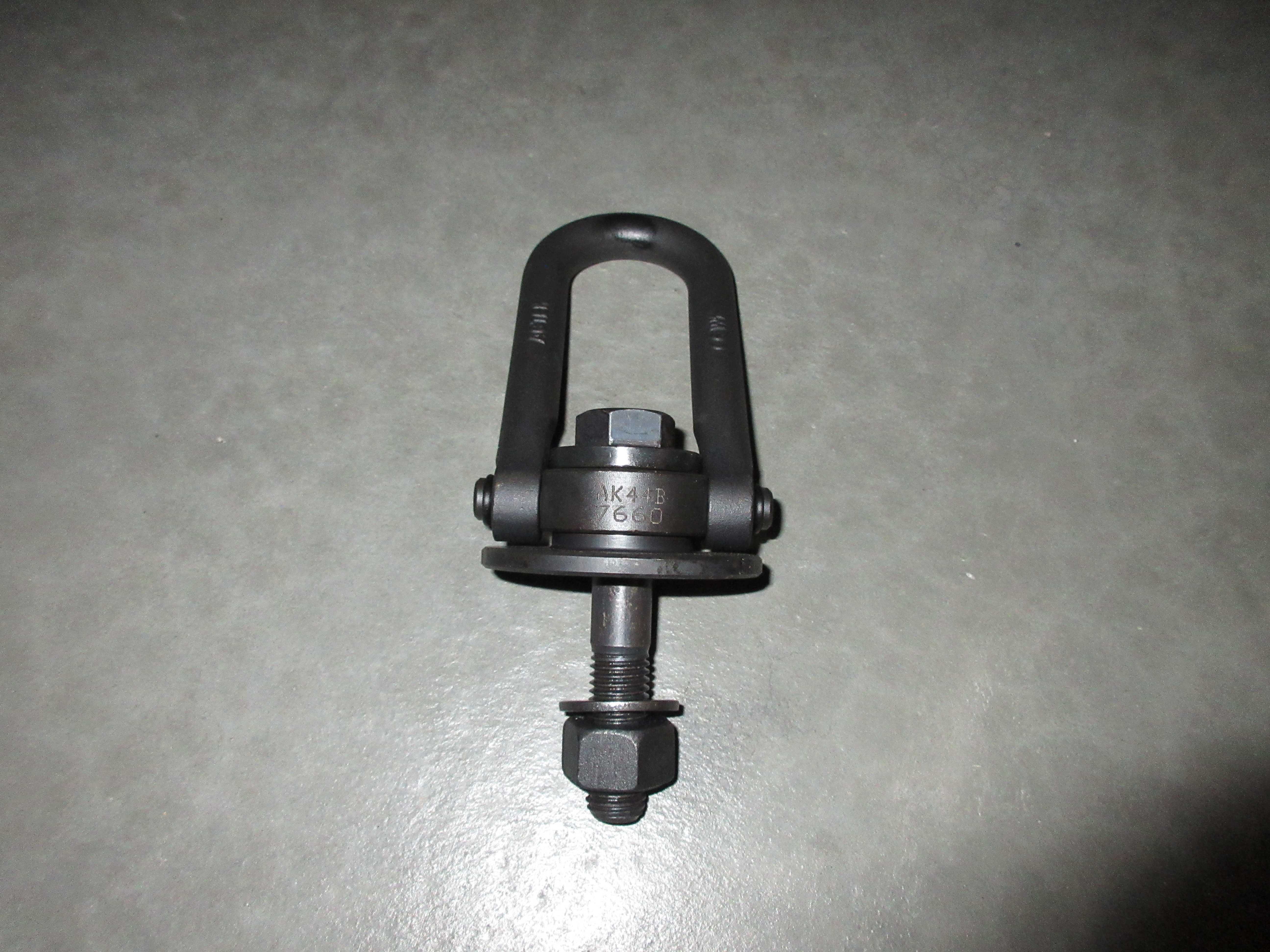

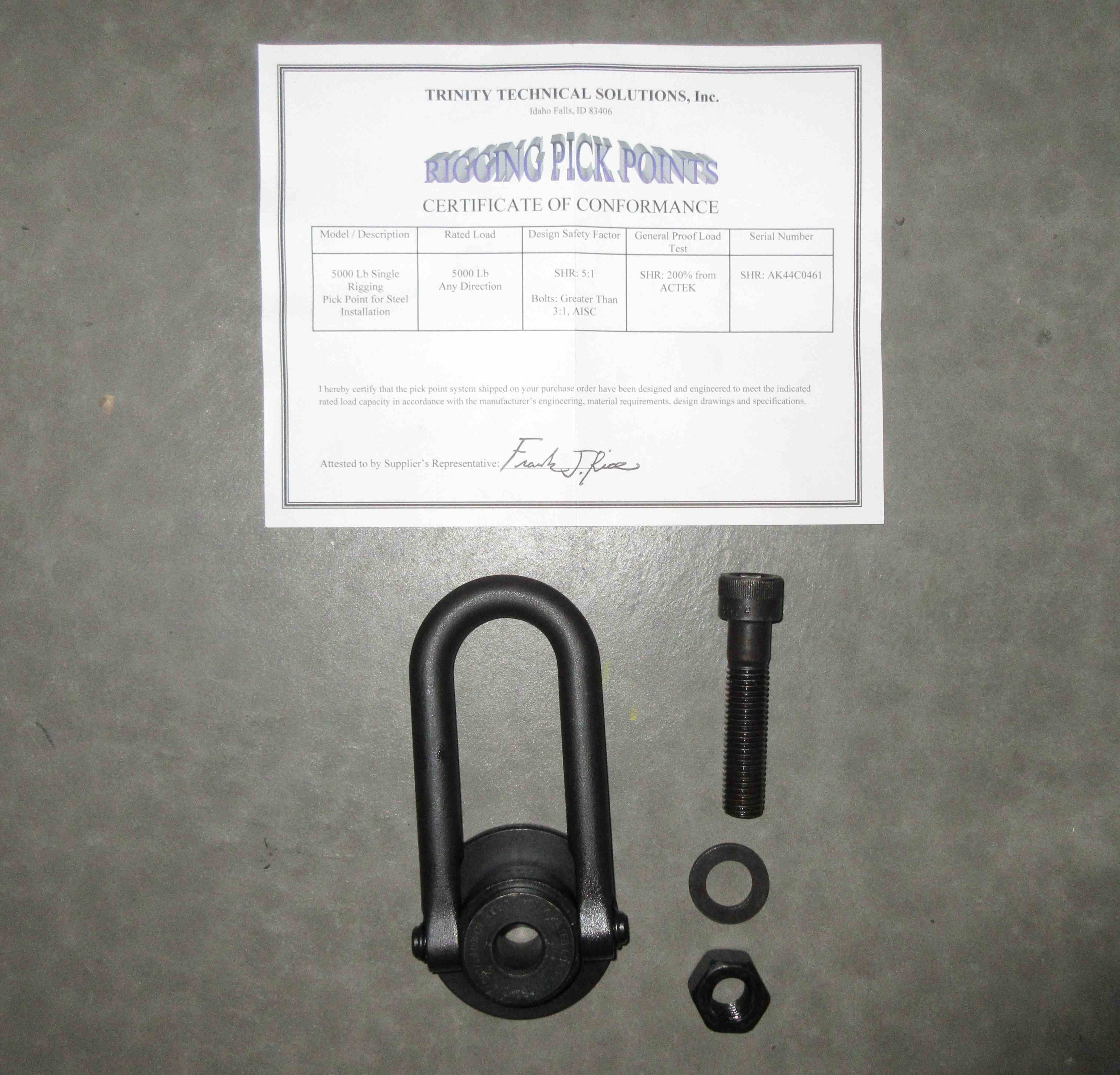

The single rigging pick point for steel installation comes with a high strength bolt and nut at any length requested by the customer. Unlike the plate rigging pick point, the single rigging pick point can be installed in tight spaces.

Rigging Pick Points can be used to create anchor points, as attachable lifting lugs or attachable bails, or for fall arrest and fall restraint applications.


Working Load Limit (WLL) = 5,000 lbs in Any Direction (Assy Only, See Warnings Page)

Swivel Hoist Ring is designed to 5:1 on ultimate strength and load tested to 2:1 (Meets ASME B30.26)

High strength bolt is designed to 3:1

Fastening Type: SAE J429 Grade 8 Bolts (Standard Length = 3-1/4 Inch, 1-7/8 Inch Thread Protrusion)

NOTE: To Determine the Total Thread Protrusion Length Subtract 1.36 Inches from Bolt Length. If ASTM A325 Bolts are Chosen Lengths are limited.

Assy Wt: Approximately 6 lbs

PART No. 01-04

WARNINGS:  See the Rigging Pick Point Warnings page prior to purchase of any Rigging Pick Point.
