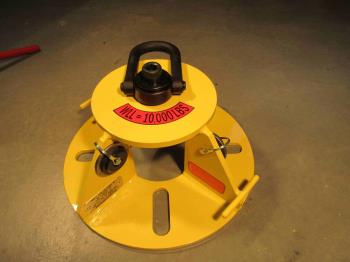

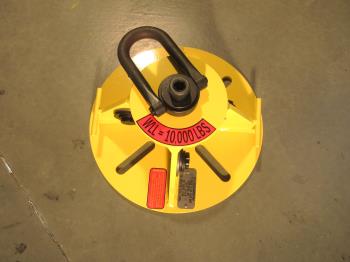

10,000 LB MODEL 1 POLE BASE LIFTING DEVICE PICK POINT (Product Under Re-Design, Available Aprox. 12/1/25 )

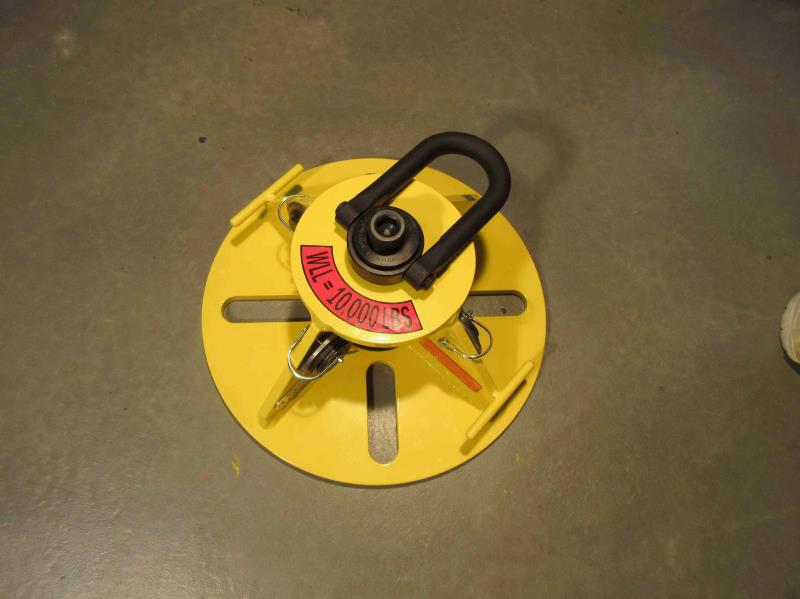

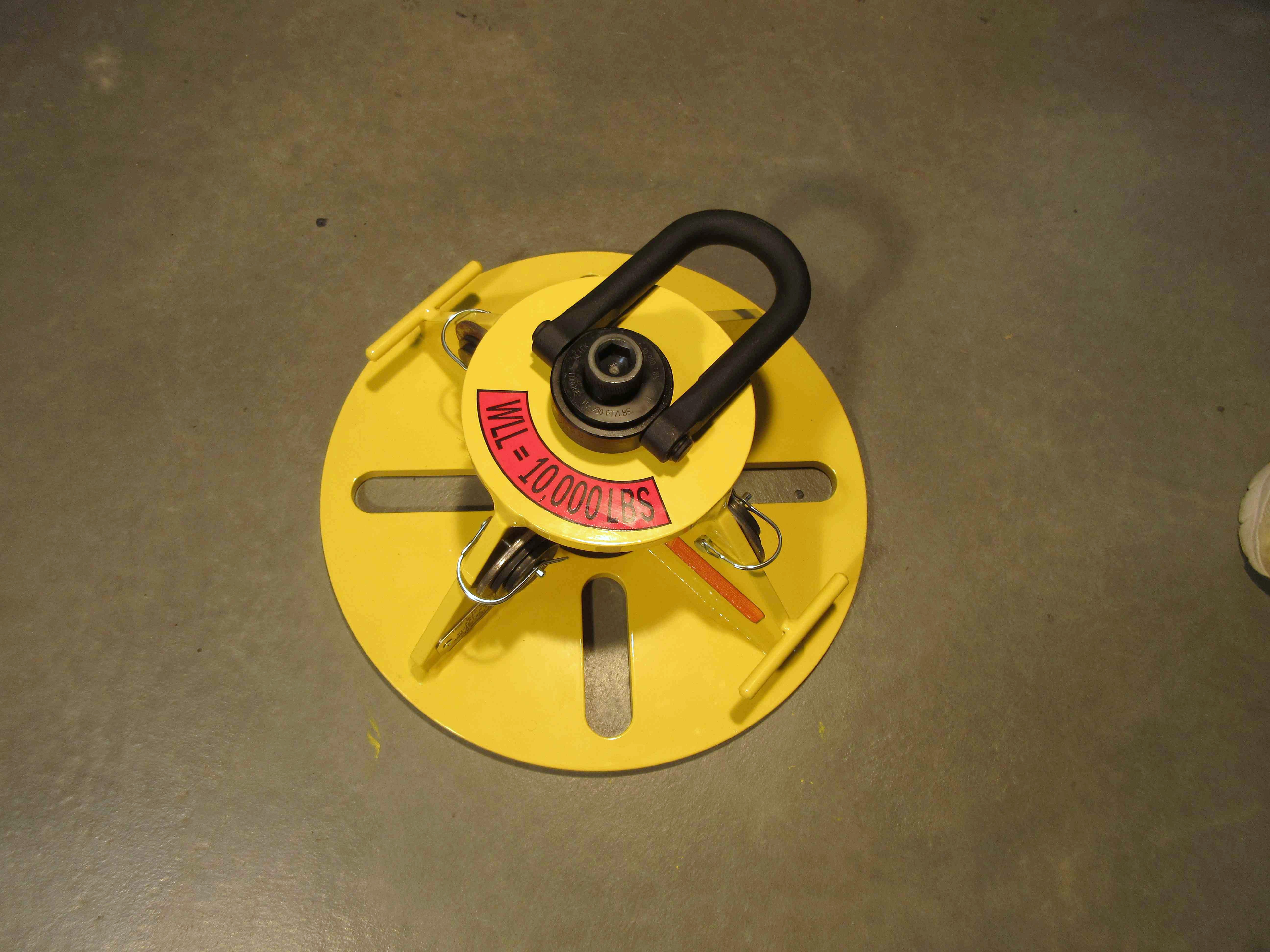

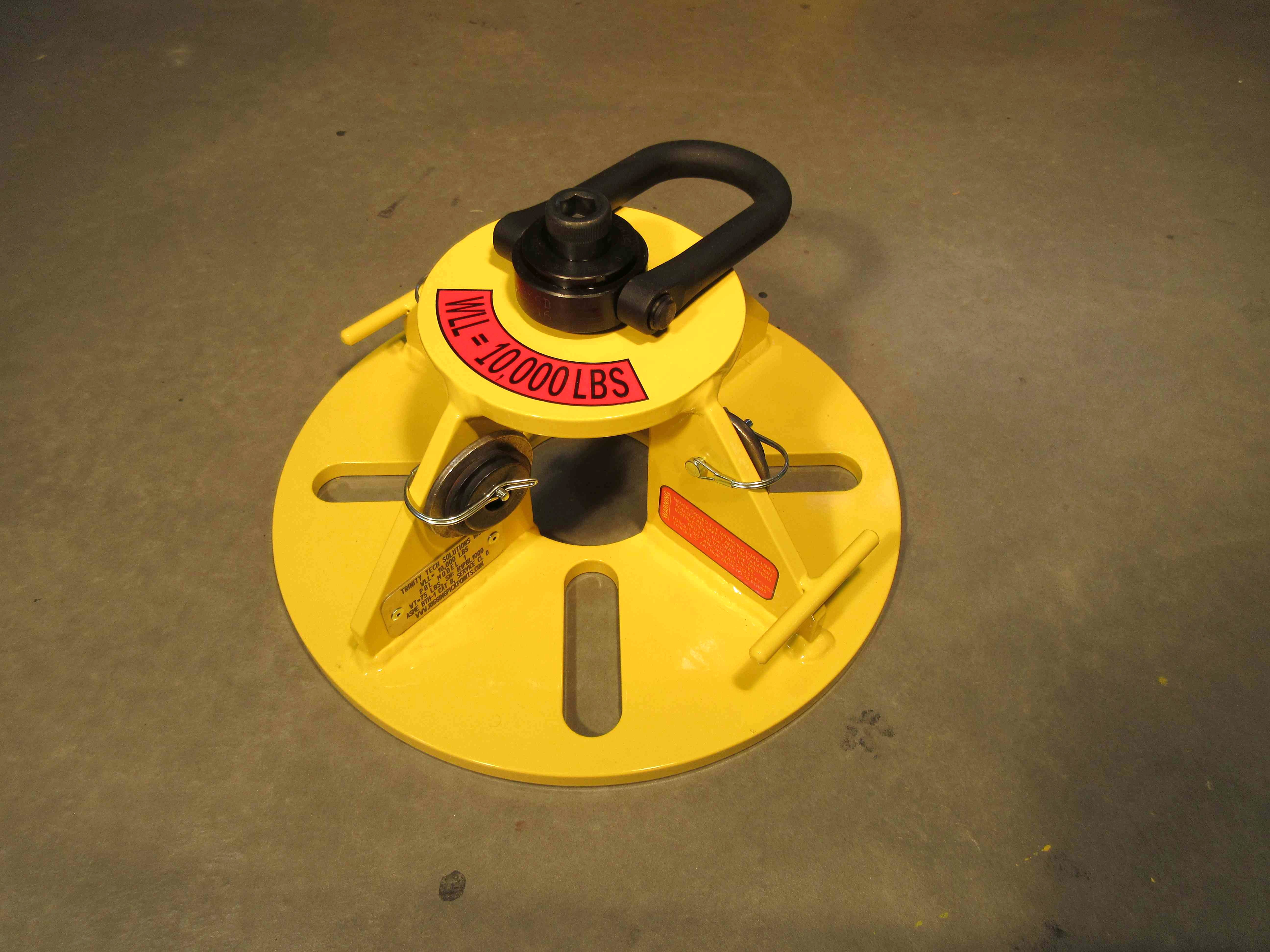

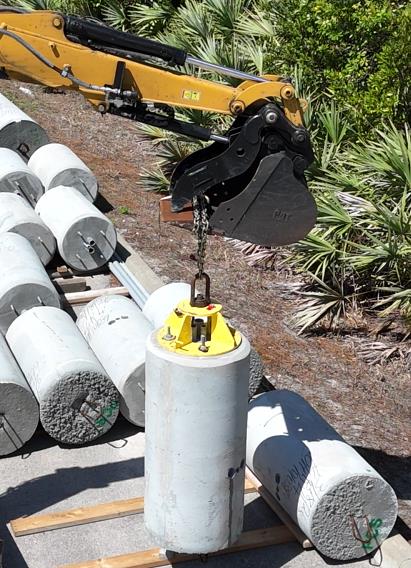

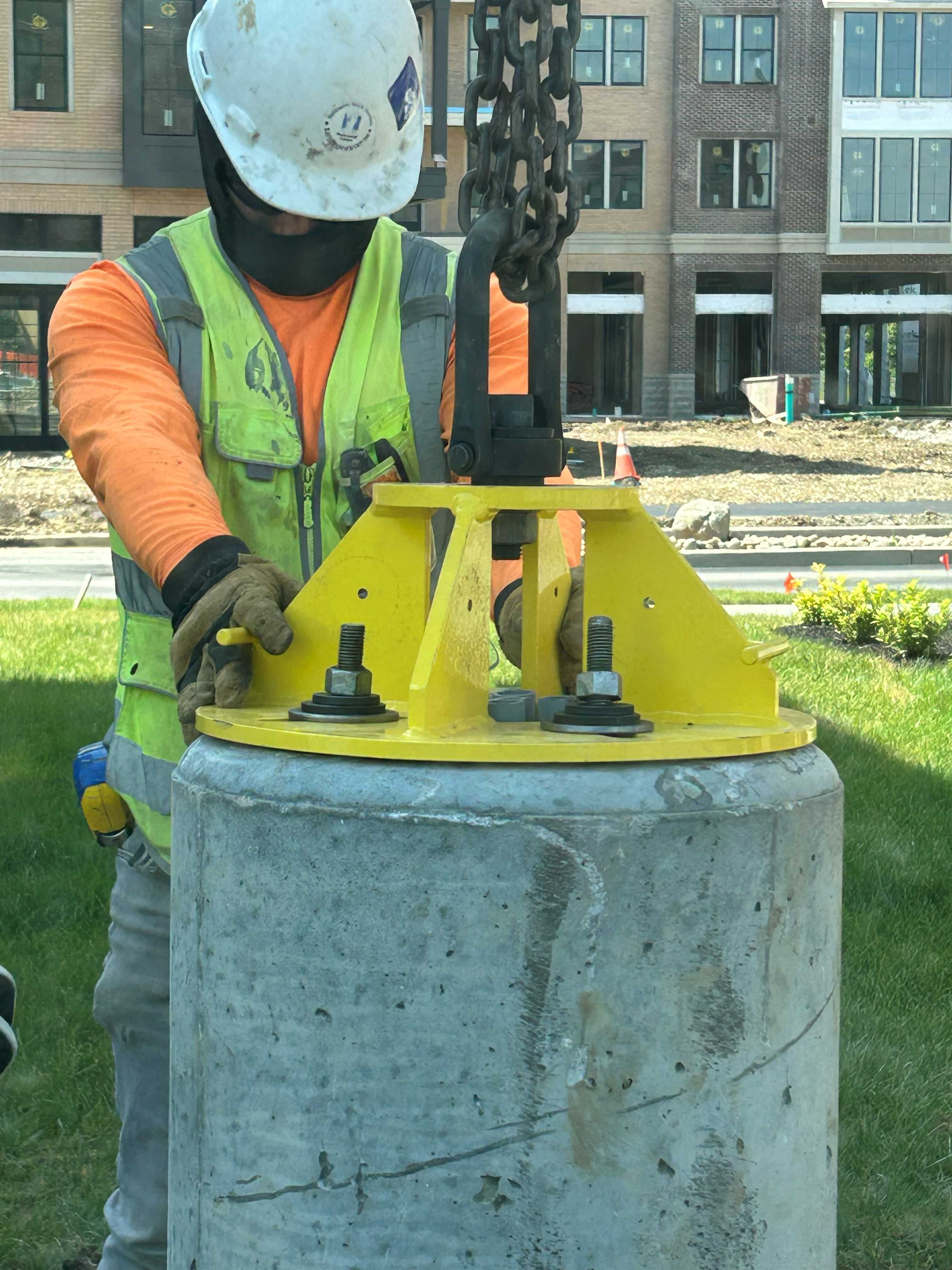

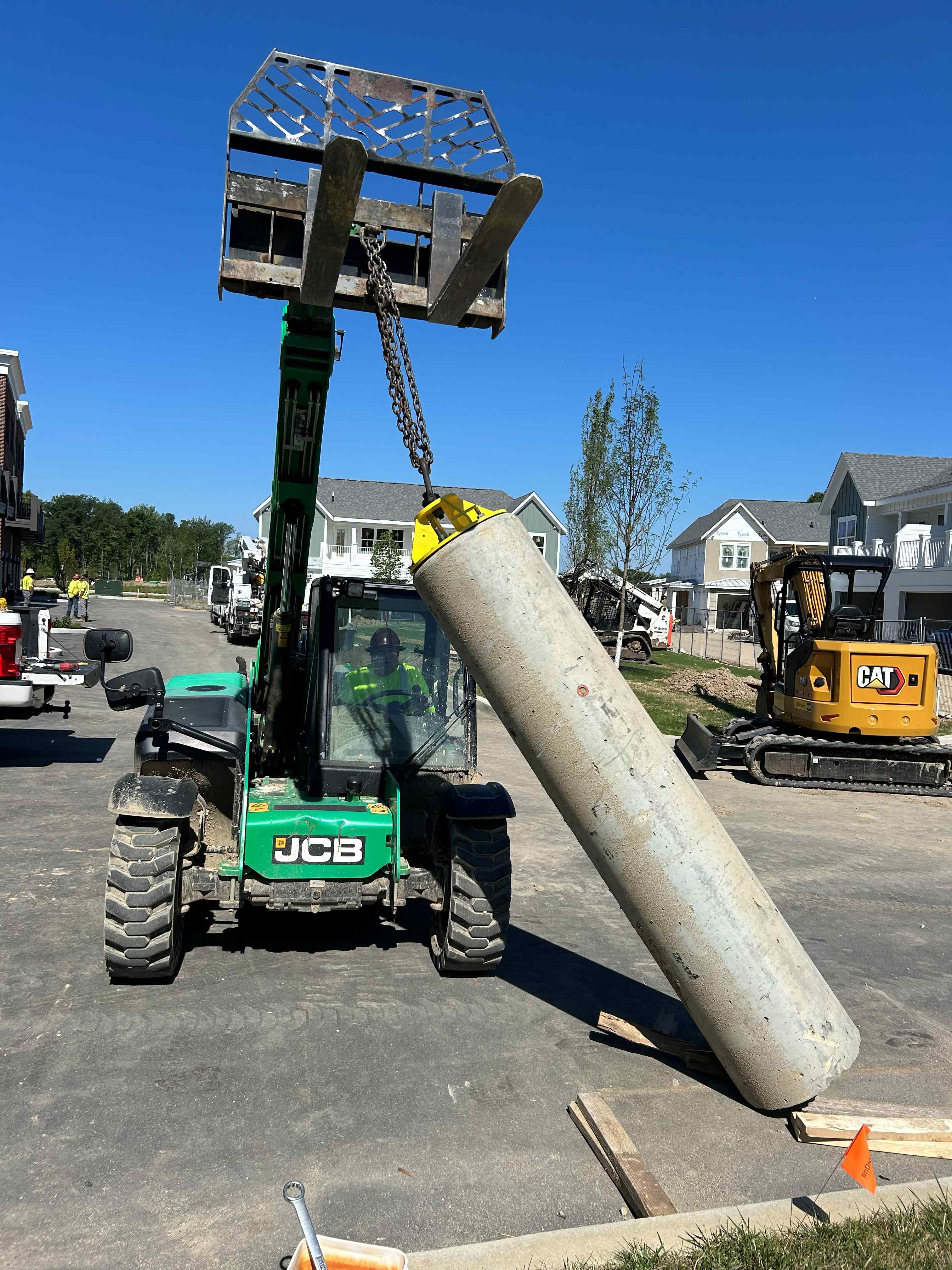

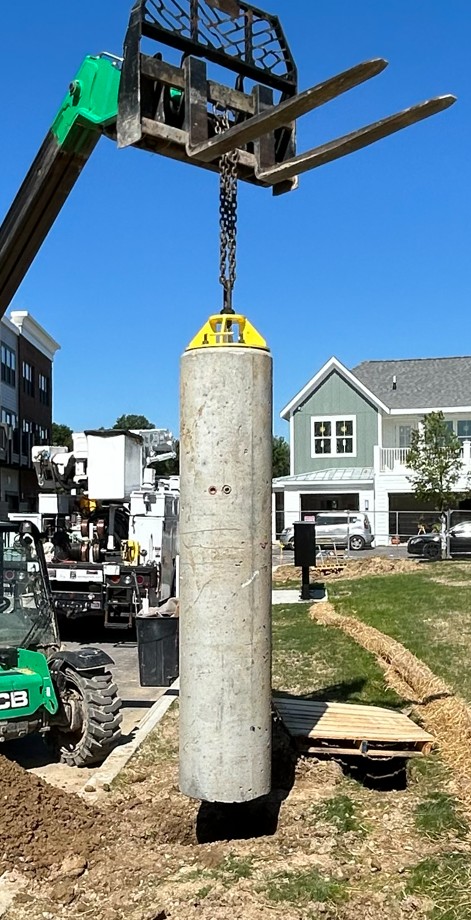

The pole base lifting device is used exclusively to lift, install, and manipulate pre-cast concrete pole bases with a maximum weight of 10,000 lb. Model 1 accomodates anchor bolt circles between 7-1/2 inches to 15 inches. It has a 5 inch diameter conduit hole and allows for a 5-3/8 inch conduit height.
Caution: Please verify this model will work for your application prior to purchase. See the Model 1 specs below or (Download Base Plate Dims and Specs Here).
SPECIFICATIONS:
Working Load Limit (WLL) = 10,000 lbs in Any Direction (Assy Only, See Warnings Page)
General Proof Load Tested to 125% (Individual Load Testing Available for Additional Fee)
Device is Designed to 3:1 based on yield strength per ASME BTH-1.
Swivel Hoist Ring is designed to 5:1 on ultimate strength and load tested to 2:1 (Meets ASME B30.26)
Device is classified as an ASME BTH-1 Design Catagory B, Service Class 0 Lifter
Dimensions: Approximately 18 inches Dia. x 10 inches tall
Max/Min Anchor Bolt Circle: 7-1/2 inches to 15 inches
Conduit Circle: 5 inch Diameter
Max Conduit Height: 5-3/8 inches
Anchor Bolt Slot Width: 1-1/2 inches
Assy Wt: Approximately 75 lbs
PART No. 01-09
WARNINGS: See the Rigging Pick Point Warnings page prior to purchase of any Rigging Pick Point.
