COMING SOON EDGE RIGGING PICK POINT (AVAILABLE APROX. 6/22/26)

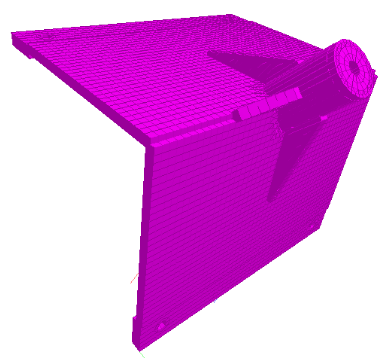

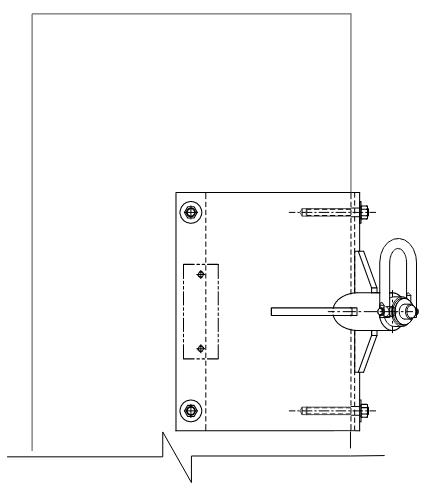

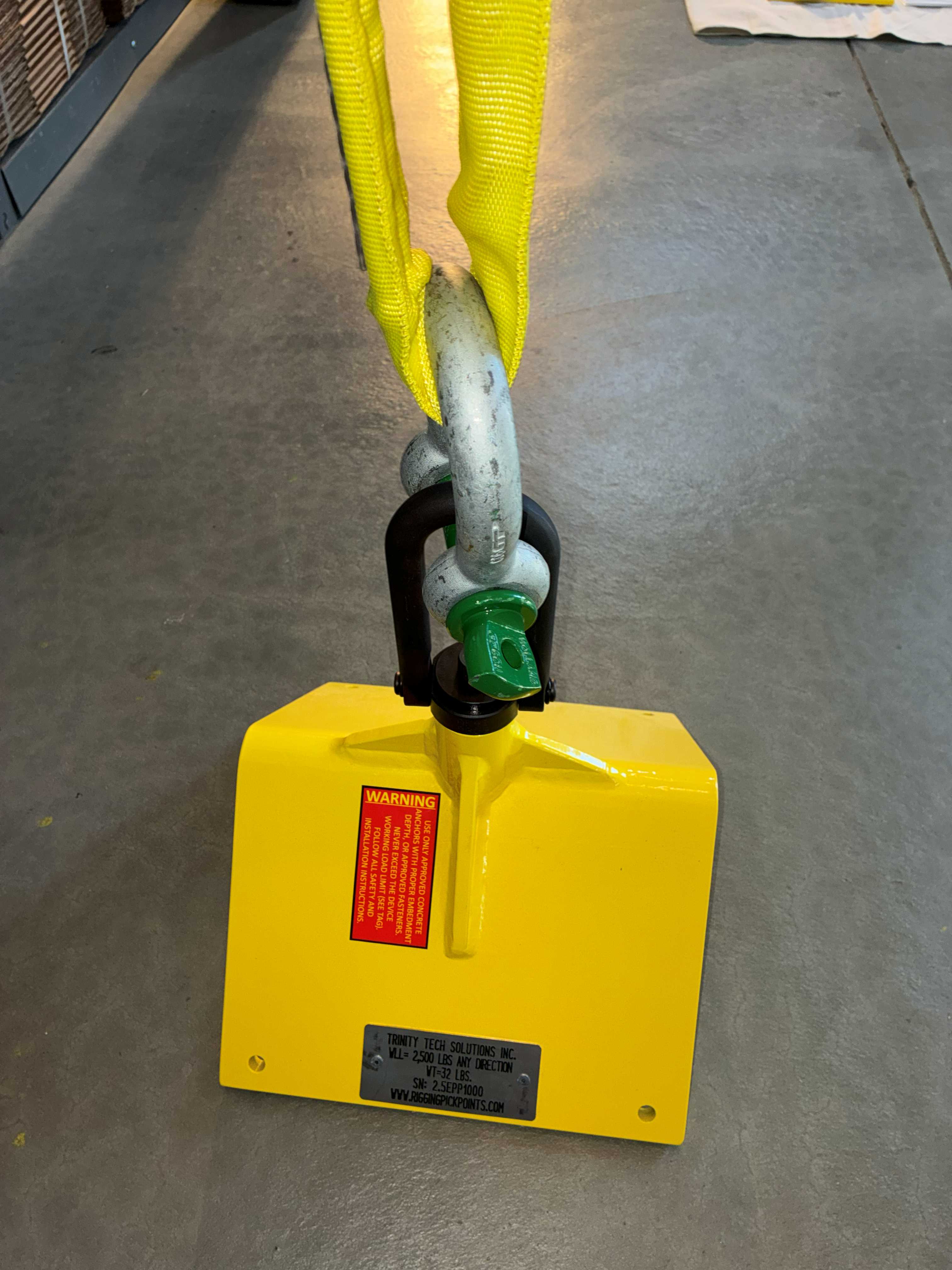

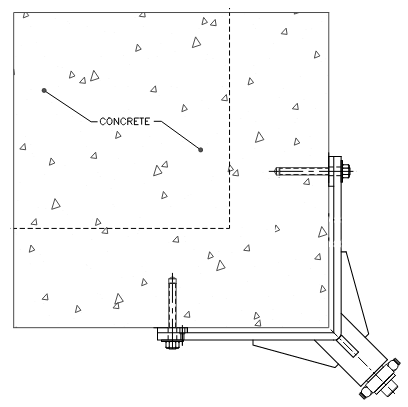

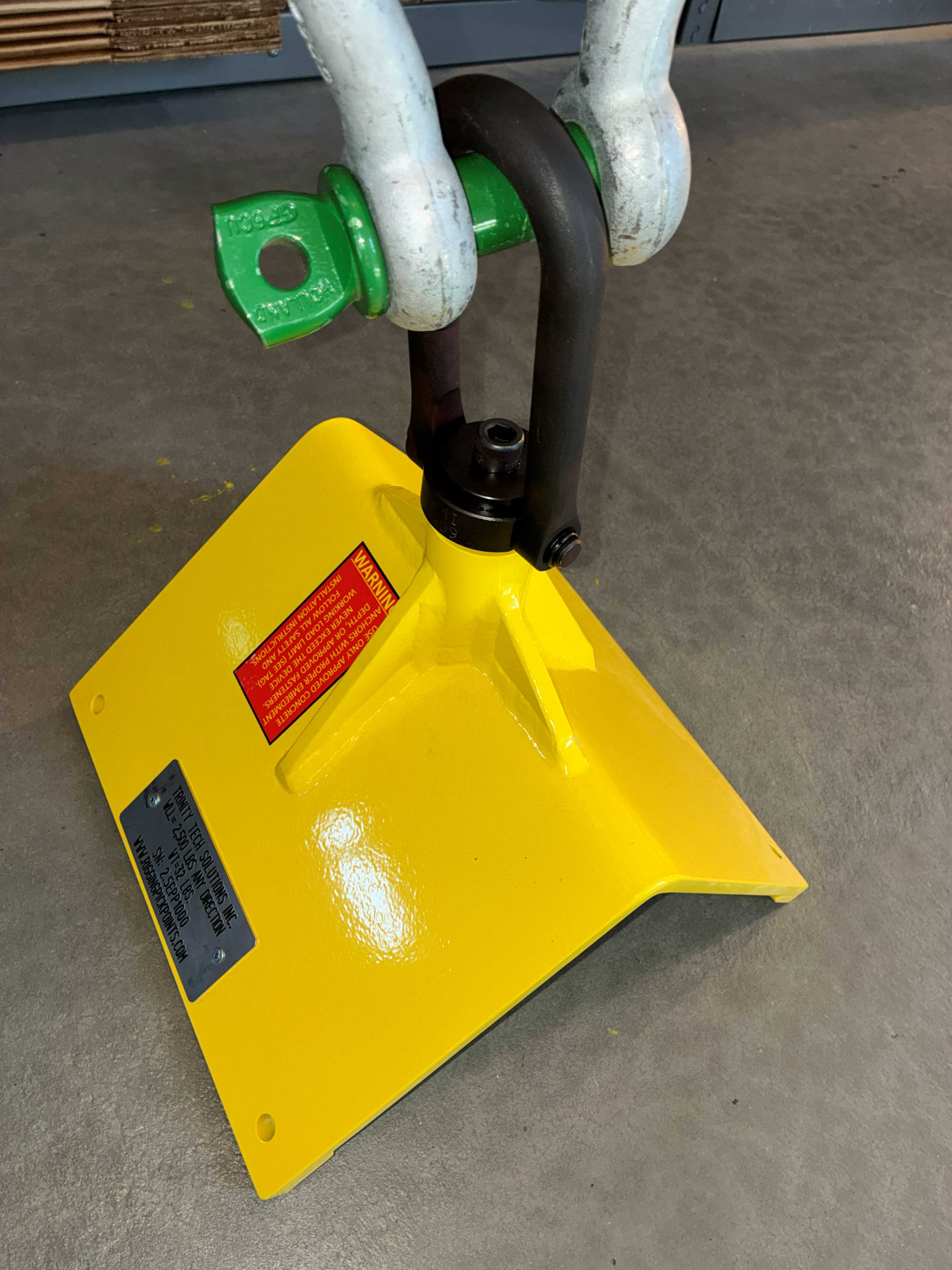

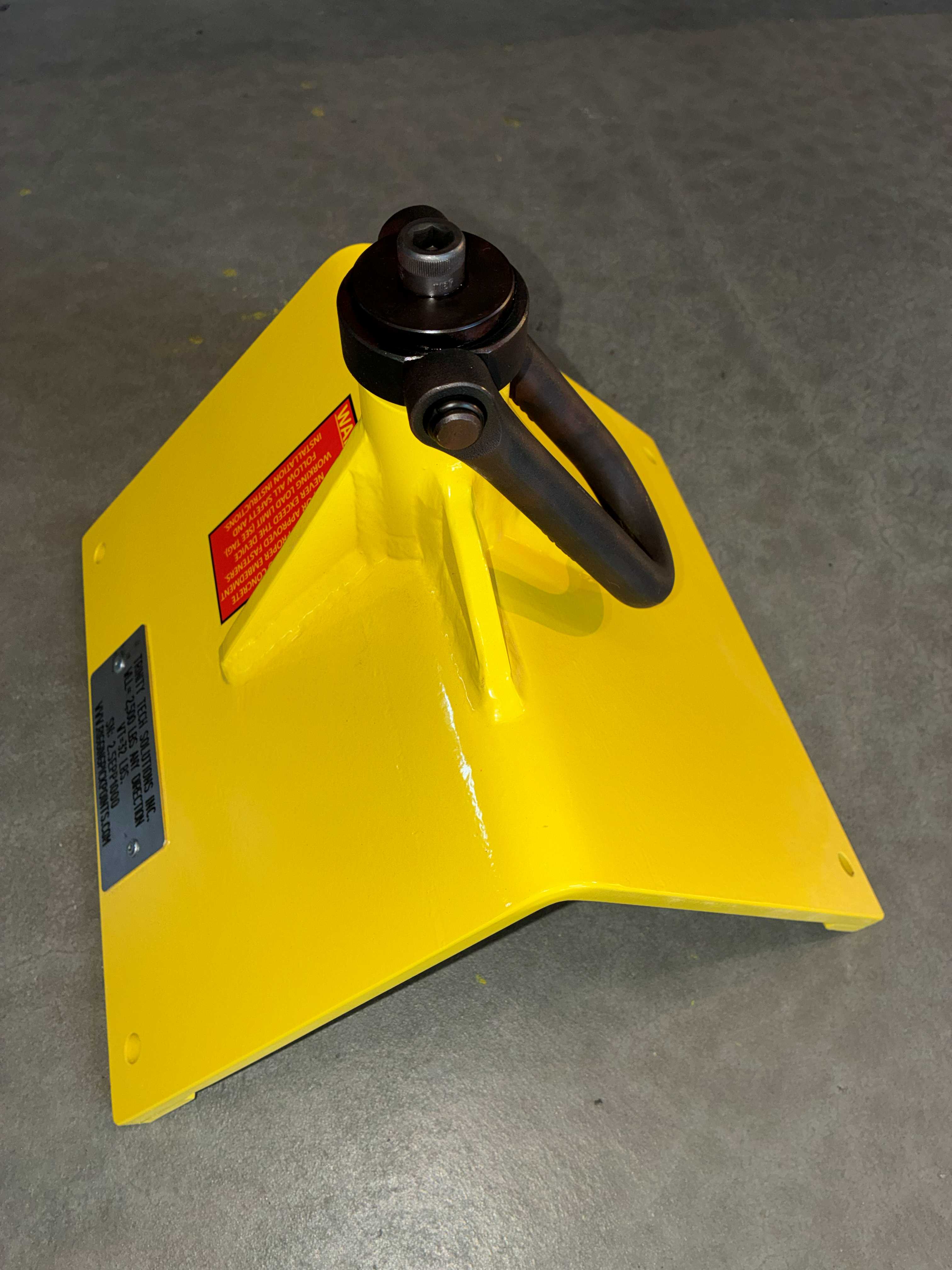

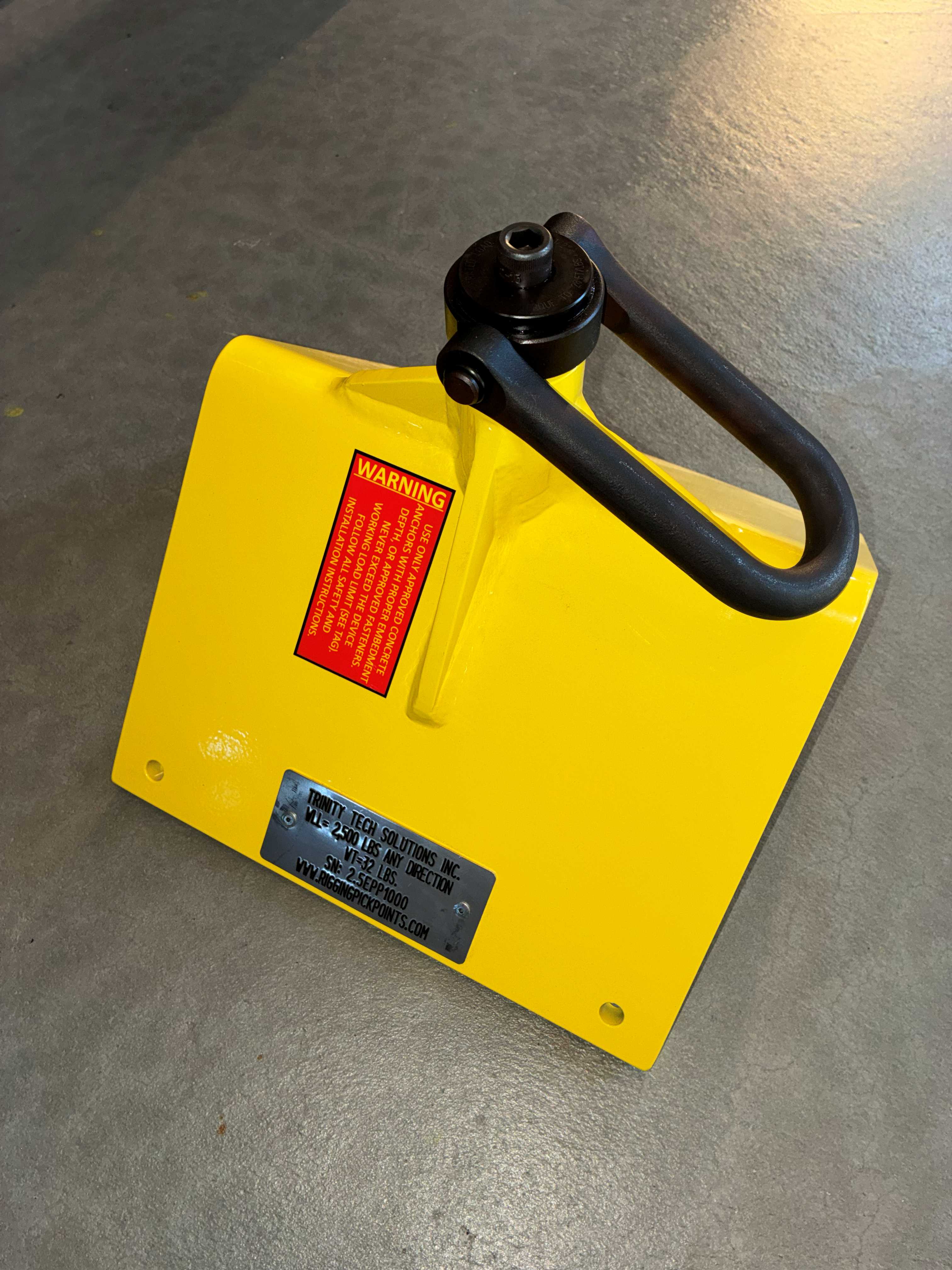

The 2,500 lb working load limit (WLL) Edge Rigging Pick Point is a versatile design that allows the user to quickly install a rigging point on the edge of a concrete or steel structure using four mechanical expansion anchors or steel bolts. It has a 2,500 lb WLL in any direction and can be removed and reused in various arrangements.
The Edge Rigging Pick Point can be used to upend, or downend, rotate and lift concrete blocks or precast concrete walls. The Edge Pick Point can also be used to create concrete anchor points, lifting lugs or bails, or for fall arrest or fall restraint applications.
SPECIFICATIONS:
Working Load Limit (WLL) = 2,500 lbs in Any Direction (Assy Only, See Warnings Page)
General Proof Load Tested to 125% (Individual Load Testing Available for Additional Fee)
Device is Designed to 3:1 based on yield strength per ASME BTH-1.
Swivel Hoist Ring is designed to 5:1 on ultimate strength and load tested to 2:1 (Meets ASME B30.26)
Concrete Anchors are designed to; 4:1 Tension, 4:1 Shear on ultimate strength
Concrete Anchors are Rated for Permanent Installation in Cracked or Uncracked Concrete (ACI-318-14)
Fastening Type: Concrete Mechanical Expansion Anchors or High Strength Steel Bolts (When Installed on Steel Structures)
Dimensions: Approx. 9.5 inches each leg x 12 inches long x 4 inches tall
Concrete Anchor Embedment Depth: 2-3/4 Inches
Minimum Concrete Edge Distance: 8 inches each leg, 10 inches each end
Minimum Spacing Between Plates: 12 Inches
Minimum Slab Thickness: 5 inches ea. surface
Assy Wt: Approximately 32 lbs
PART No. 01-11
WARNINGS: See the Rigging Pick Point Warnings page prior to purchase of any Rigging Pick Point.
