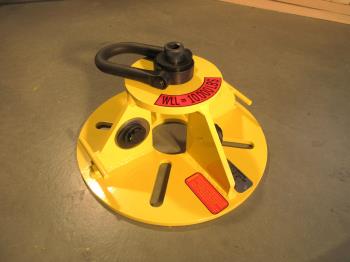

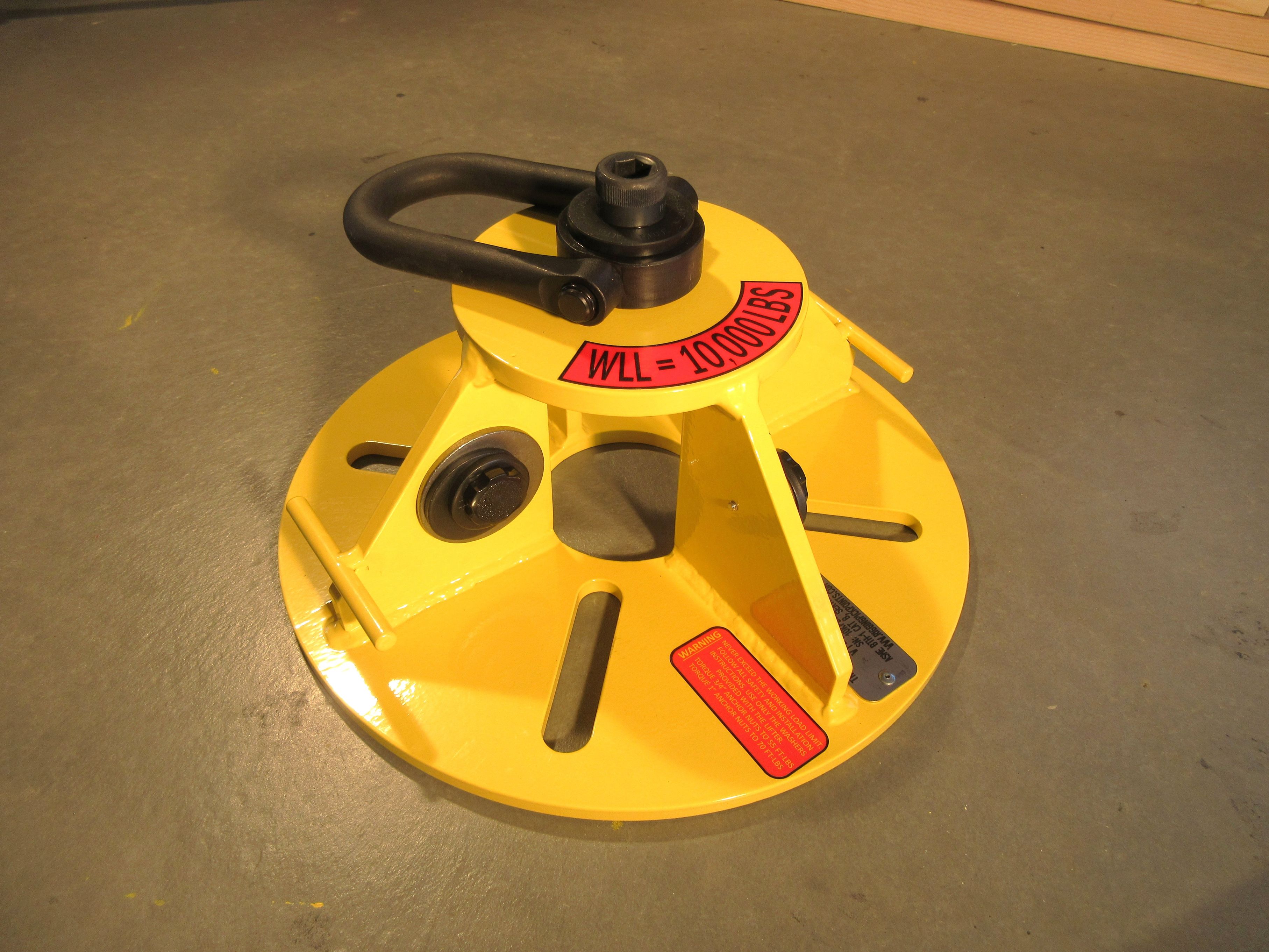

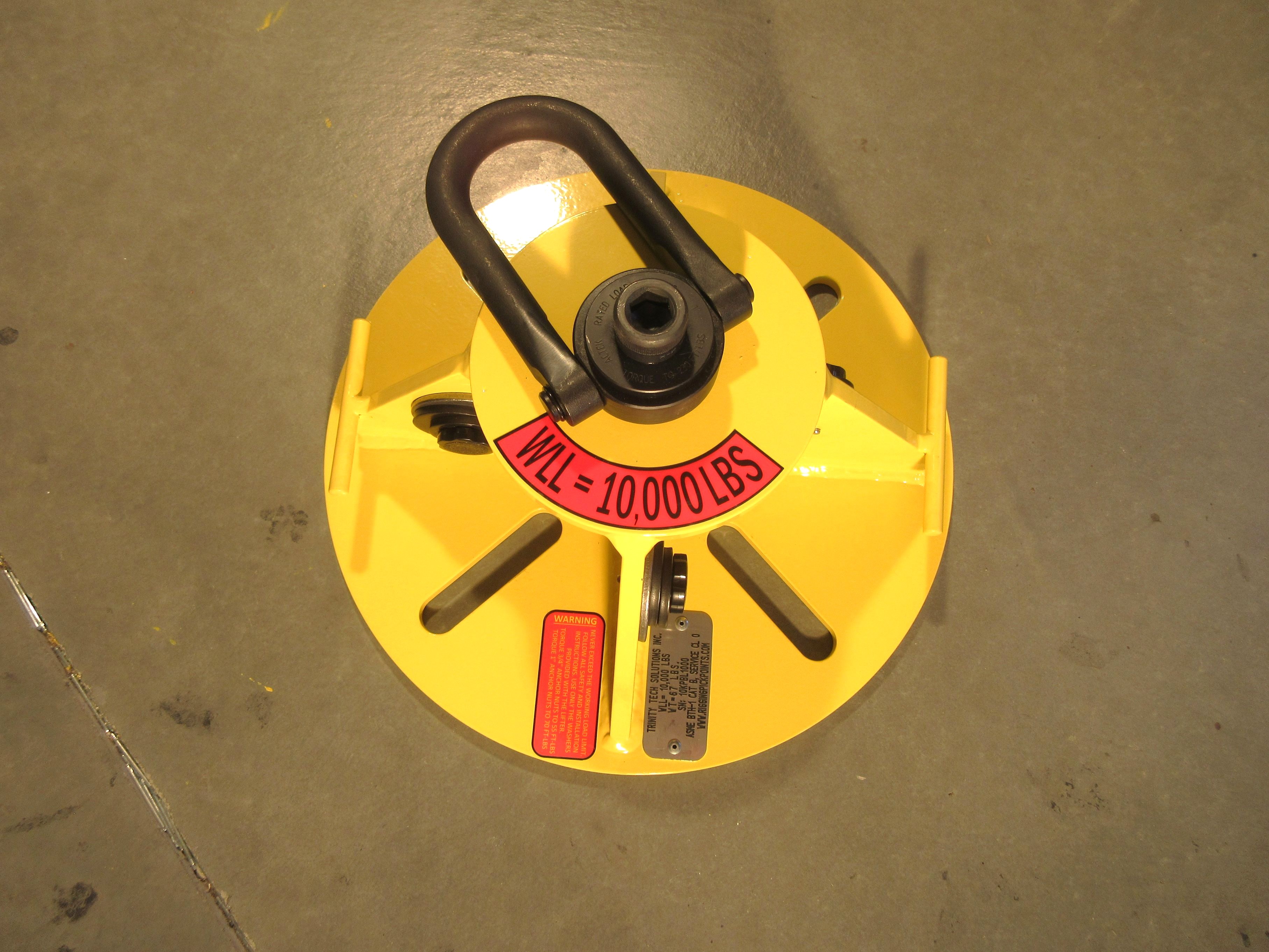

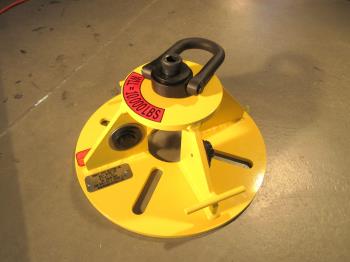

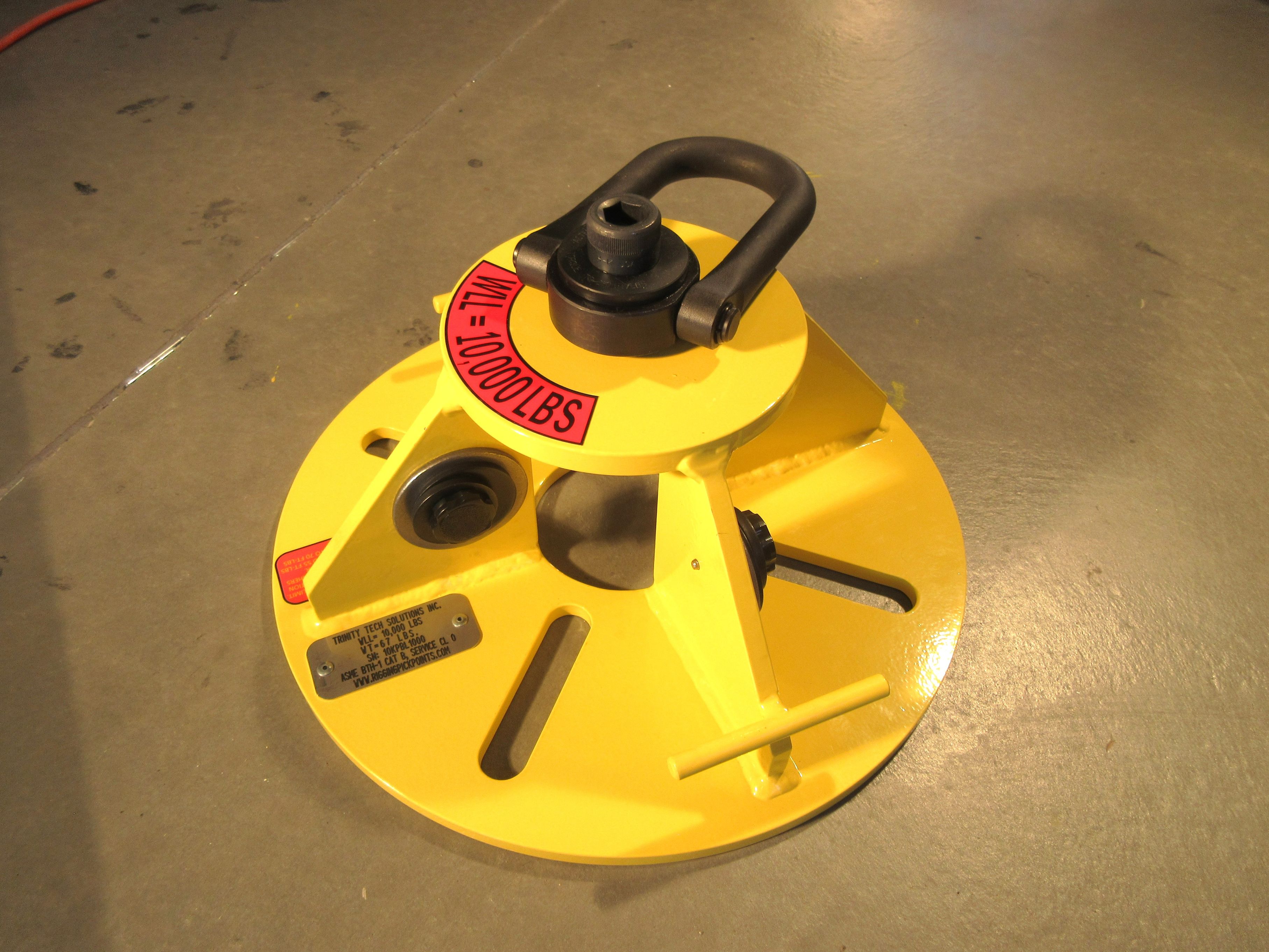

10,000 LB POLE BASE LIFTING DEVICE PICK POINT (Product Under Re-Design, Available Aprox. 9/20/25 )
The pole base lifting device is used exclusively to lift, install, and manipulate any size of pre-cast concrete pole base with a maximum weight of 10,000 lb, and an anchor bolt circle of 7.5 inches to 15 inches. The center hole is 5 inch diameter to accomodate cast in place conduit.
SPECIFICATIONS:
Working Load Limit (WLL) = 10,000 lbs in Any Direction (Assy Only, See Warnings Page)
General Proof Load Tested to 125% (Individual Load Testing Available for Additional Fee)
Device is Designed to 3:1 based on yield strength per ASME BTH-1.
Swivel Hoist Ring is designed to 5:1 on ultimate strength and load tested to 2:1 (Meets ASME B30.26)
Device is classified as an ASME BTH-1 Design Catagory B, Service Class 0 Lifter
Dimensions: Approximately 18 inches Dia. x 10 inches tall
Assy Wt: Approximately 67 lbs
PART No. 01-09
WARNINGS: See the Rigging Pick Point Warnings page prior to purchase of any Rigging Pick Point.
